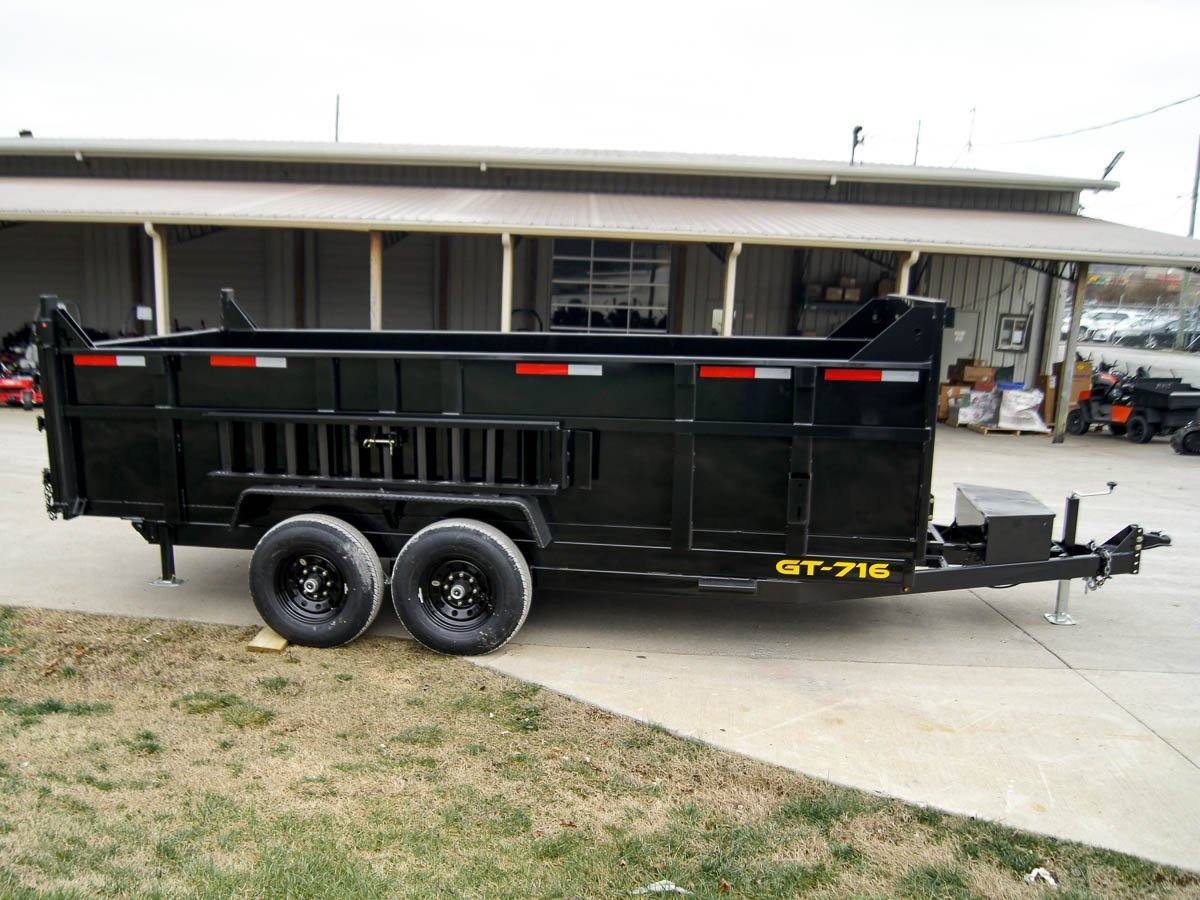

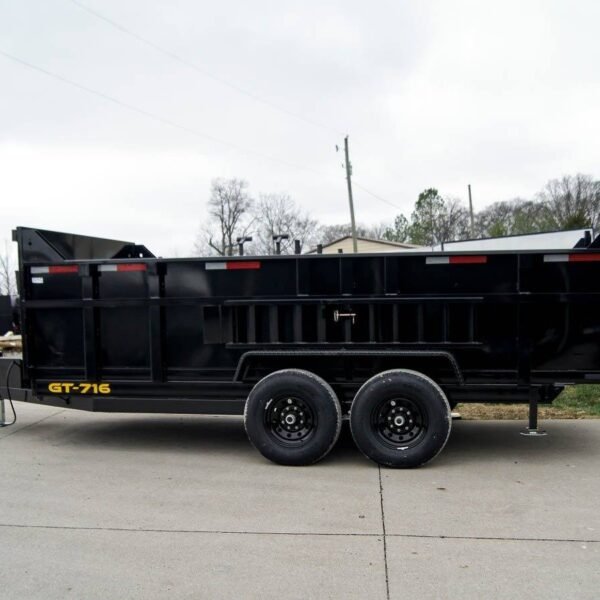

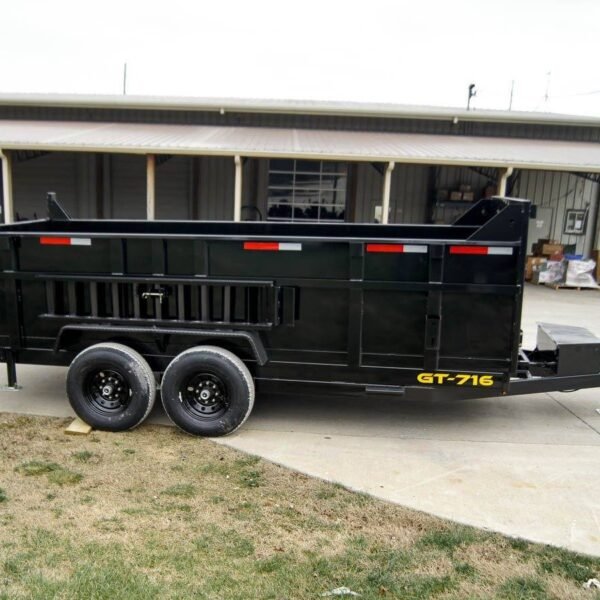

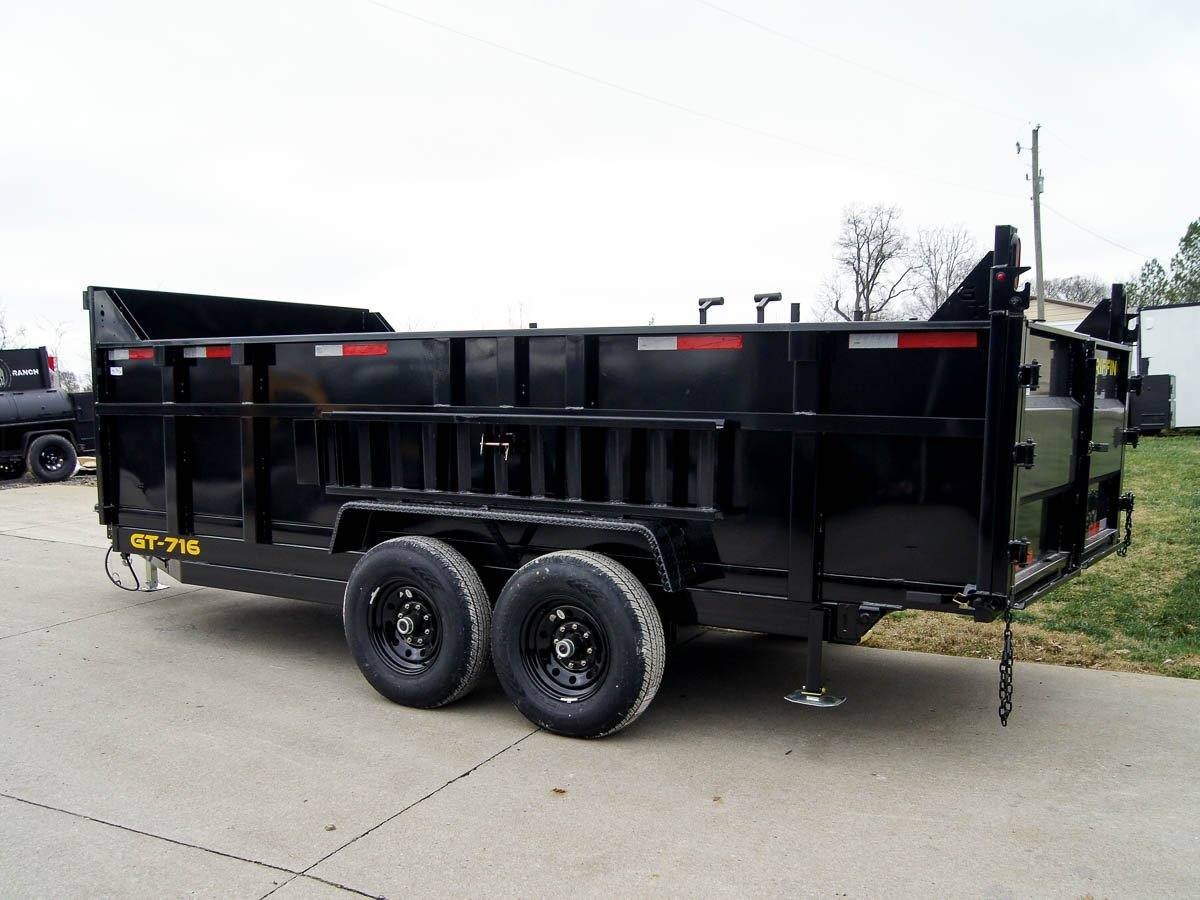

7×16 Telescopic Dump Trailer with 3ft Sides (2) 7K Axles GVWR 14k

7×16 Telescopic Dump Trailer with 3ft Sides (2) 7K Axles

Features:

• The length of the trailer is 16 feet, or 192 inches.
• The sidewall height measures 36 inches, providing ample vertical space for a variety of loads.
• The width of the trailer is 7 feet, or 82.5 inches.
• The floor height is set at 29 inches, facilitating easy loading and unloading.
• The coupler height stands at 18 inches, ensuring compatibility with different towing vehicles.
• The cross members are constructed from 2″ x 3″ tubes, spaced 16 inches on center for enhanced structural integrity.

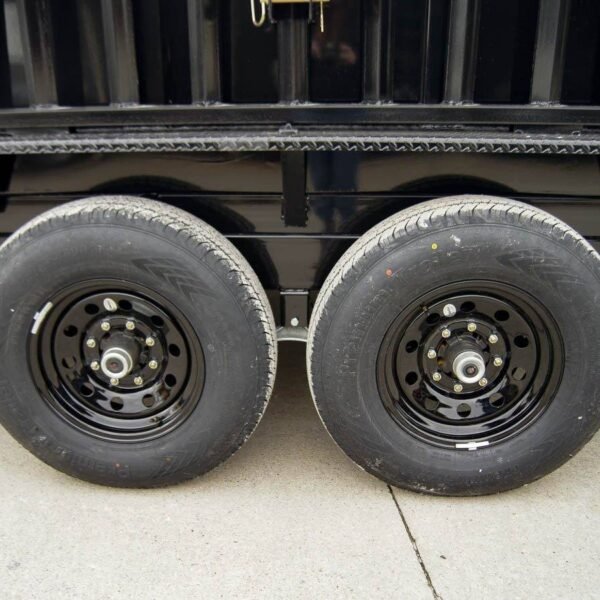

• The wheels feature a black powder coat finish, offering durability and protection against corrosion.

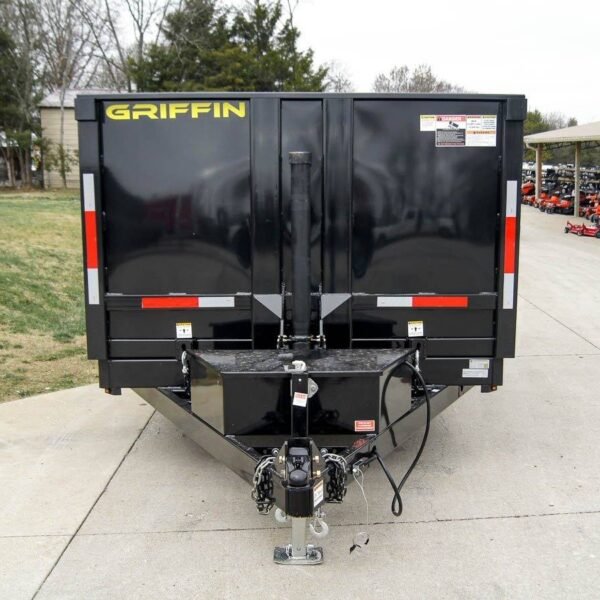

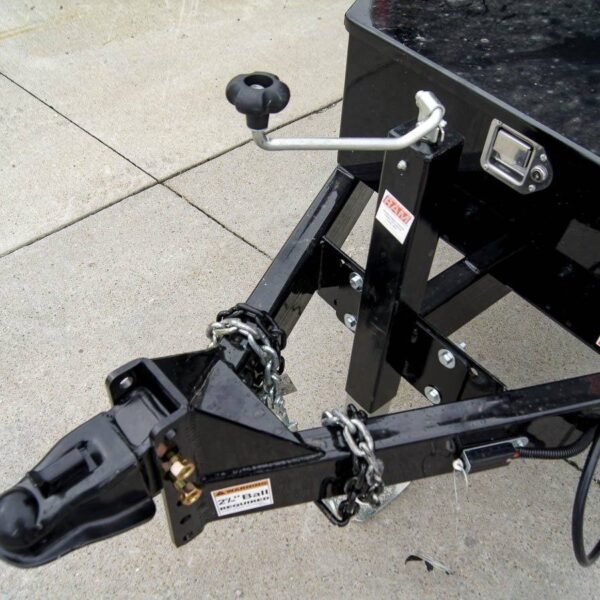

• The coupler is a 2-5/16″ adjustable coupler, allowing for flexibility in towing options.
• The tires are 16-inch radial tires designed to provide reliable performance on various terrains.

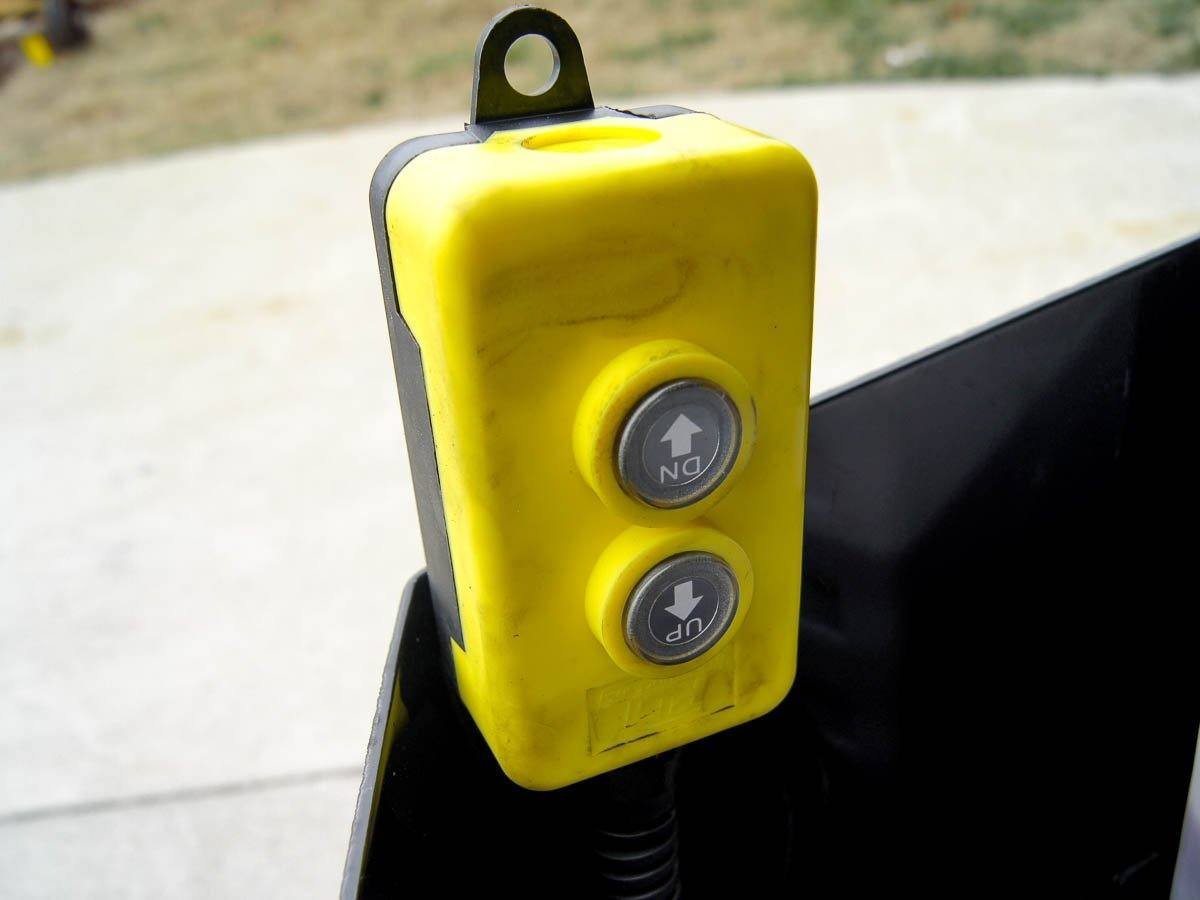

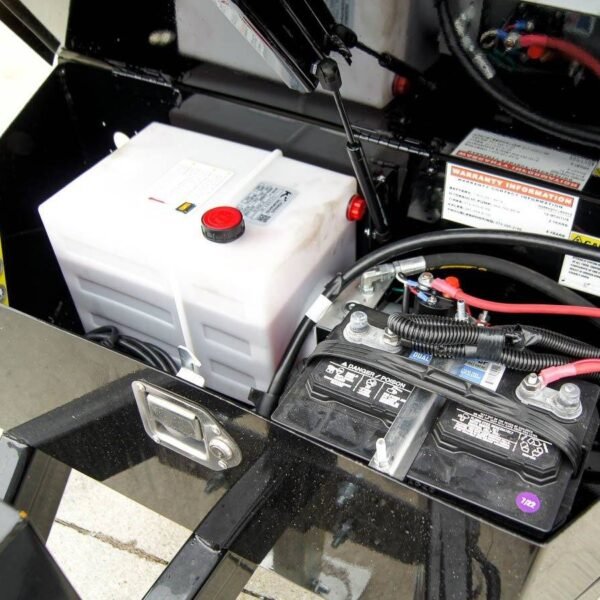

• 12v DC Hydraulic Pump – (3200 PSI Pwr Up) (0 PSI Pwr Down)
• The spare tire mount is a standard mount, ensuring easy access to a spare tire when necessary.

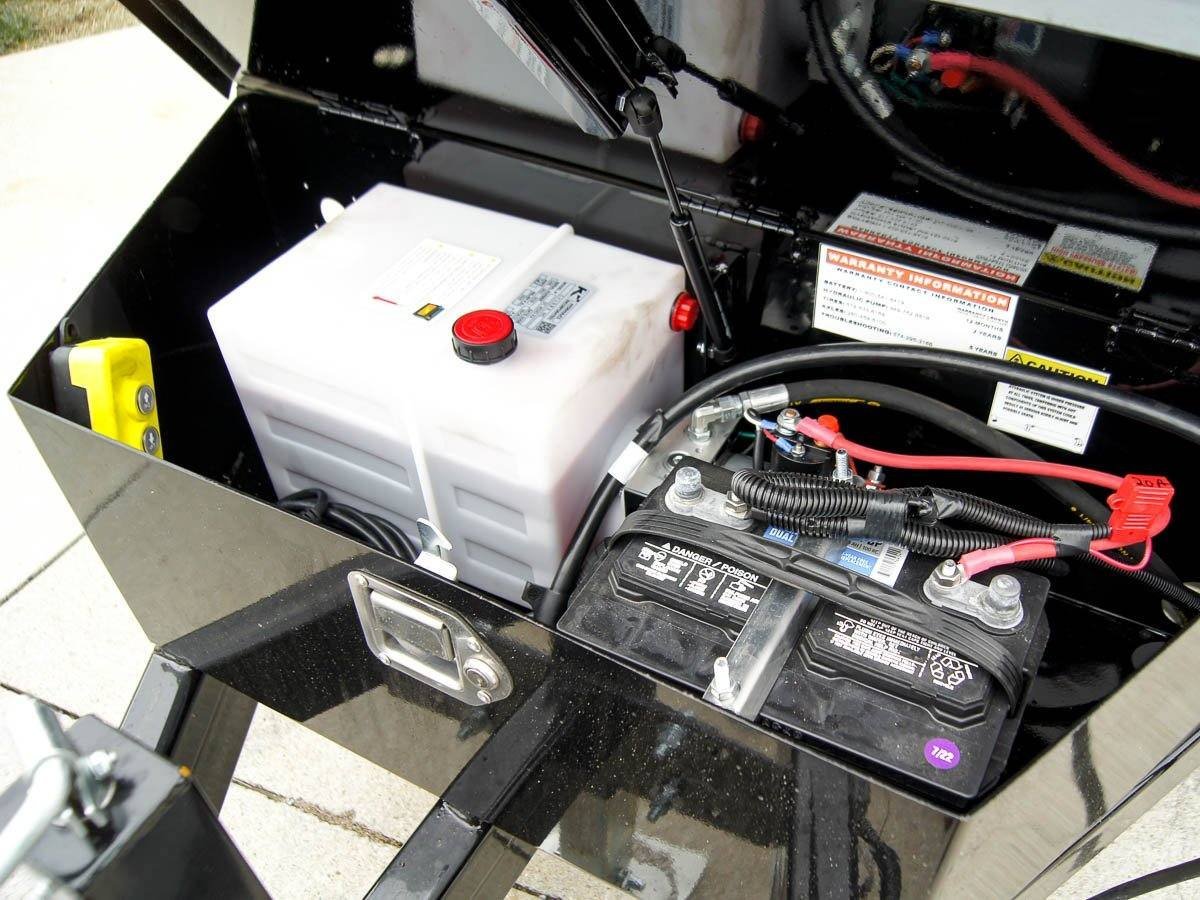

• The battery is an Interstate deep cycle marine battery, providing a dependable power supply for the trailer’s hydraulic system.

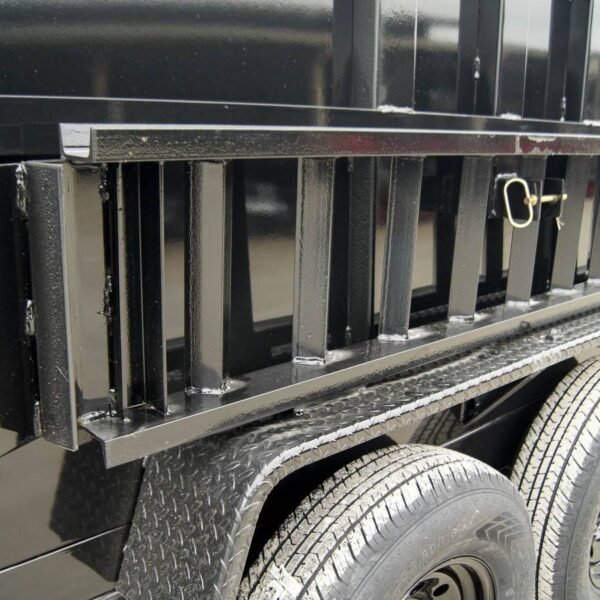

• The ramps are 80-inch C-channel fender-mounted ramps, offering convenient access for loading and unloading.
• The jack is an adjustable 7000 lb. top wind drop leg jack, ensuring stability and ease of use during loading and unloading.

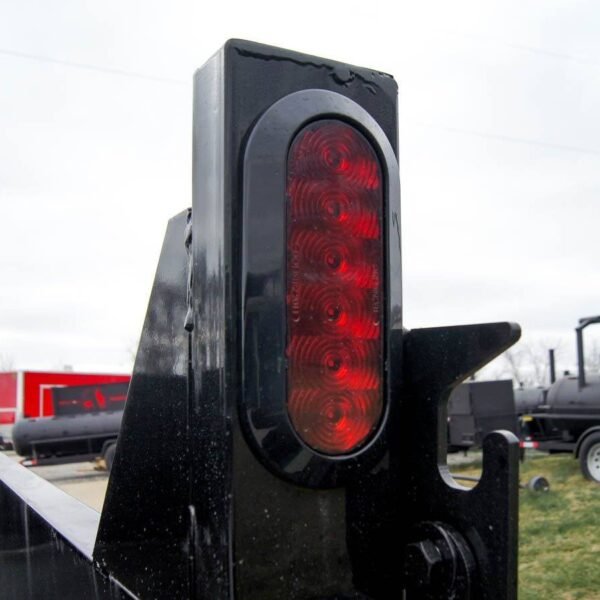

• The lighting system includes amber and red LED lights for improved visibility and safety on the road.

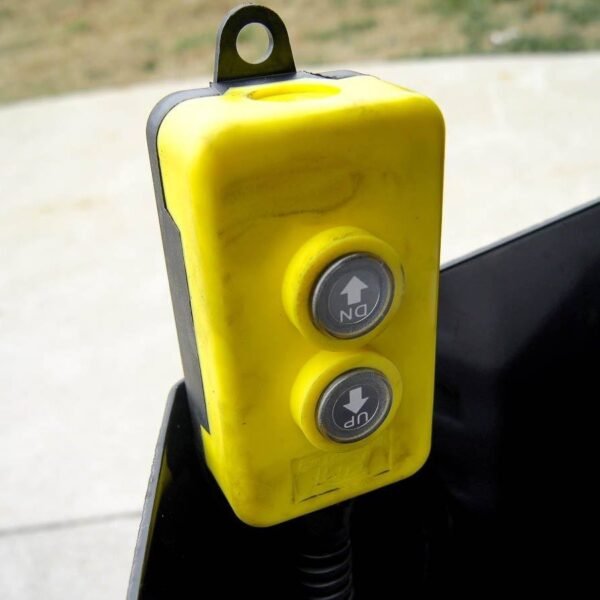

• The control box features easy front access with a key lock for added security and convenience.
• The wiring harness consists of a 3-piece plug-and-play system, simplifying installation and maintenance.
• The fenders are constructed from 14-gauge formed treadplate for maximum strength and durability.
• The electric plug is a 7-pin round connector, ensuring a reliable electrical connection between the trailer and the towing vehicle.

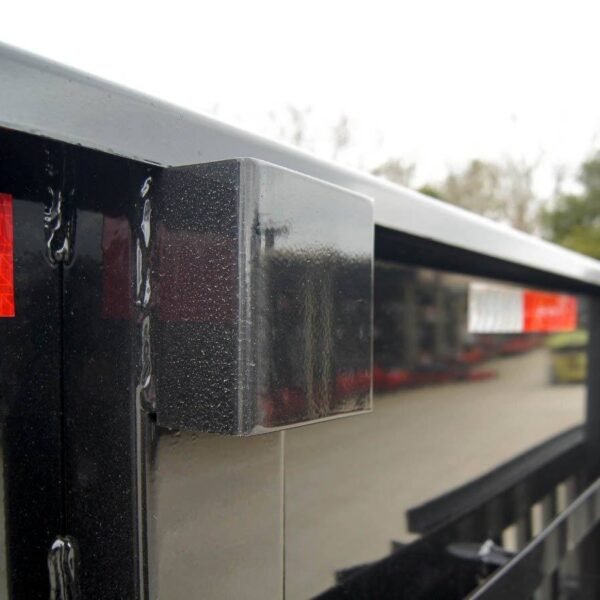

• The stake pockets are made from 2″ x 4″ tubes, providing additional support and tie-down options for securing loads.

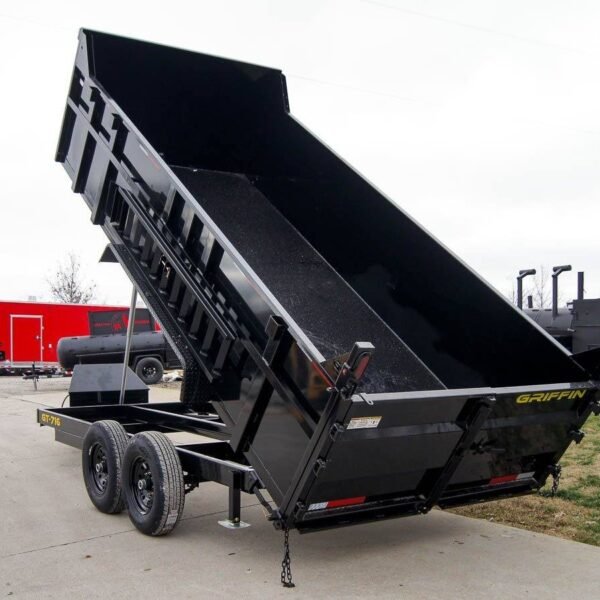

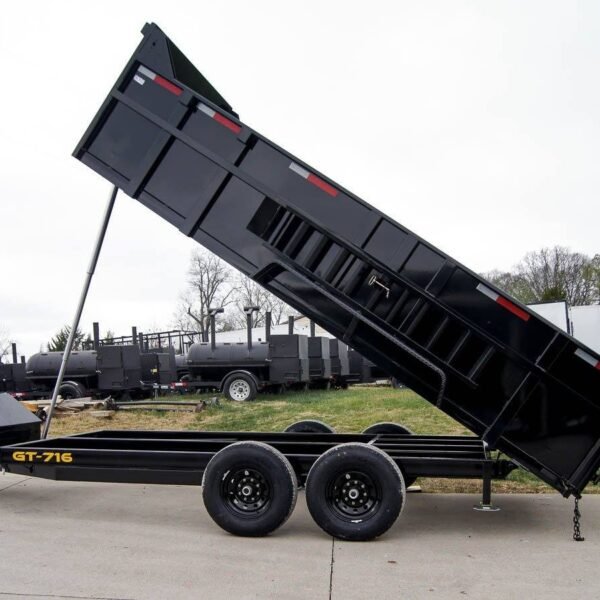

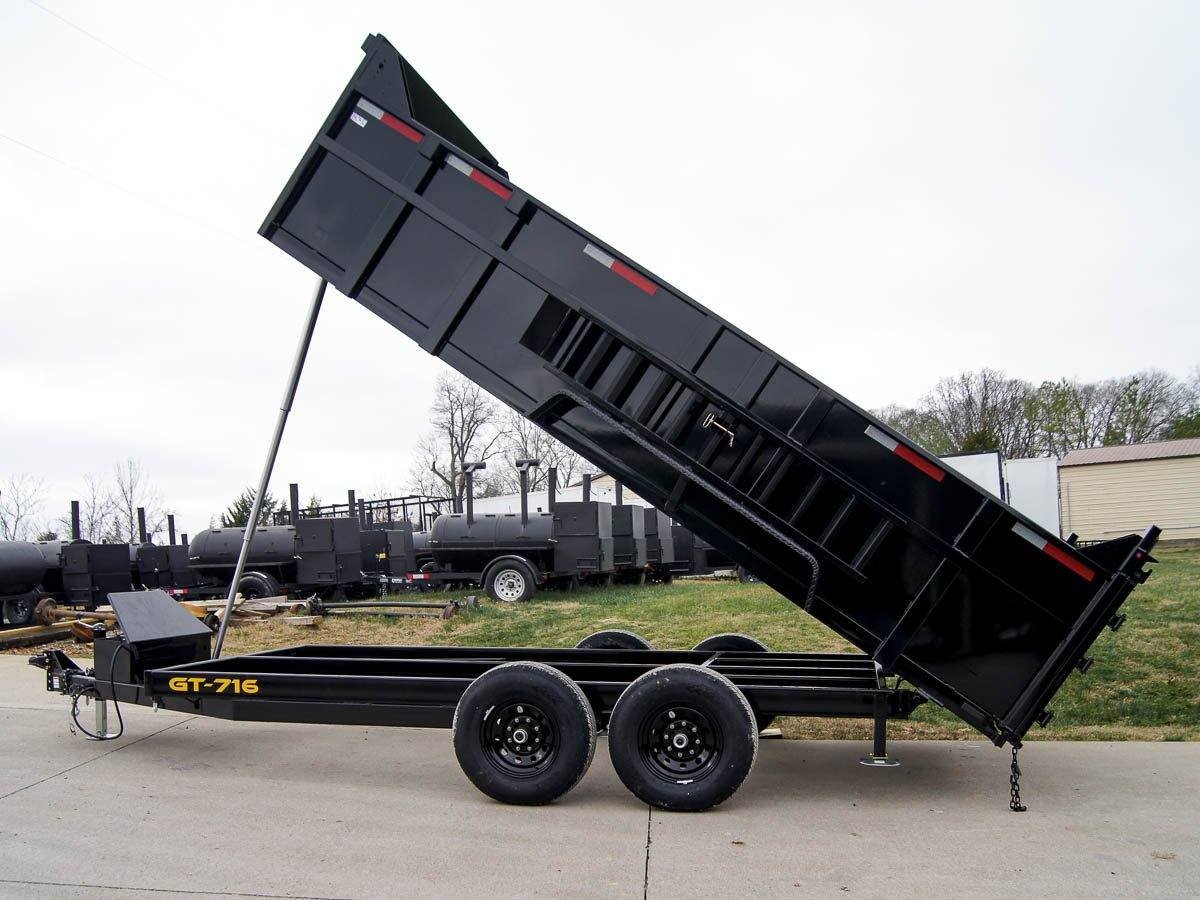

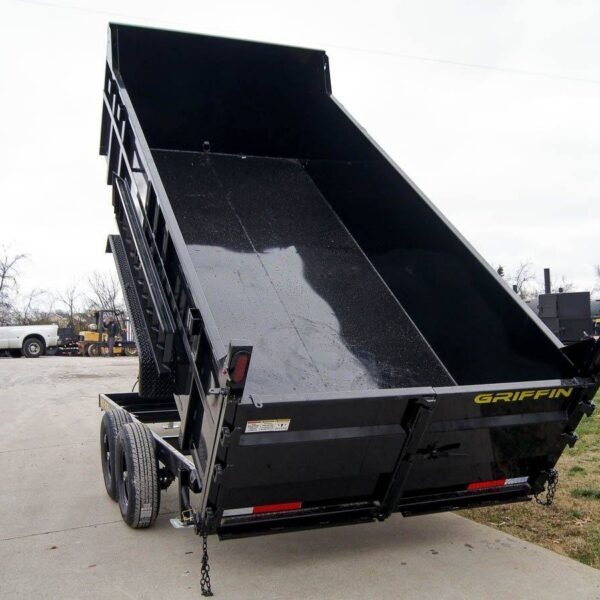

• The lift system utilizes a 3-stage telescoping mechanism for efficient and powerful lifting capabilities.
• The gussets measure 2″ x 12″ and are located at the front and rear for wall extension support and structural reinforcement.
• The floor and walls are made from 10-gauge smooth steel, ensuring durability and strength for heavy loads.
• The safety chains include two forged slip hooks measuring 5/16″ x 35″, with a capacity of 11,700 lbs. for secure towing.
• The D-rings consist of five 5000 lb. D-rings welded into the floor, providing secure tie-down points for various loads.

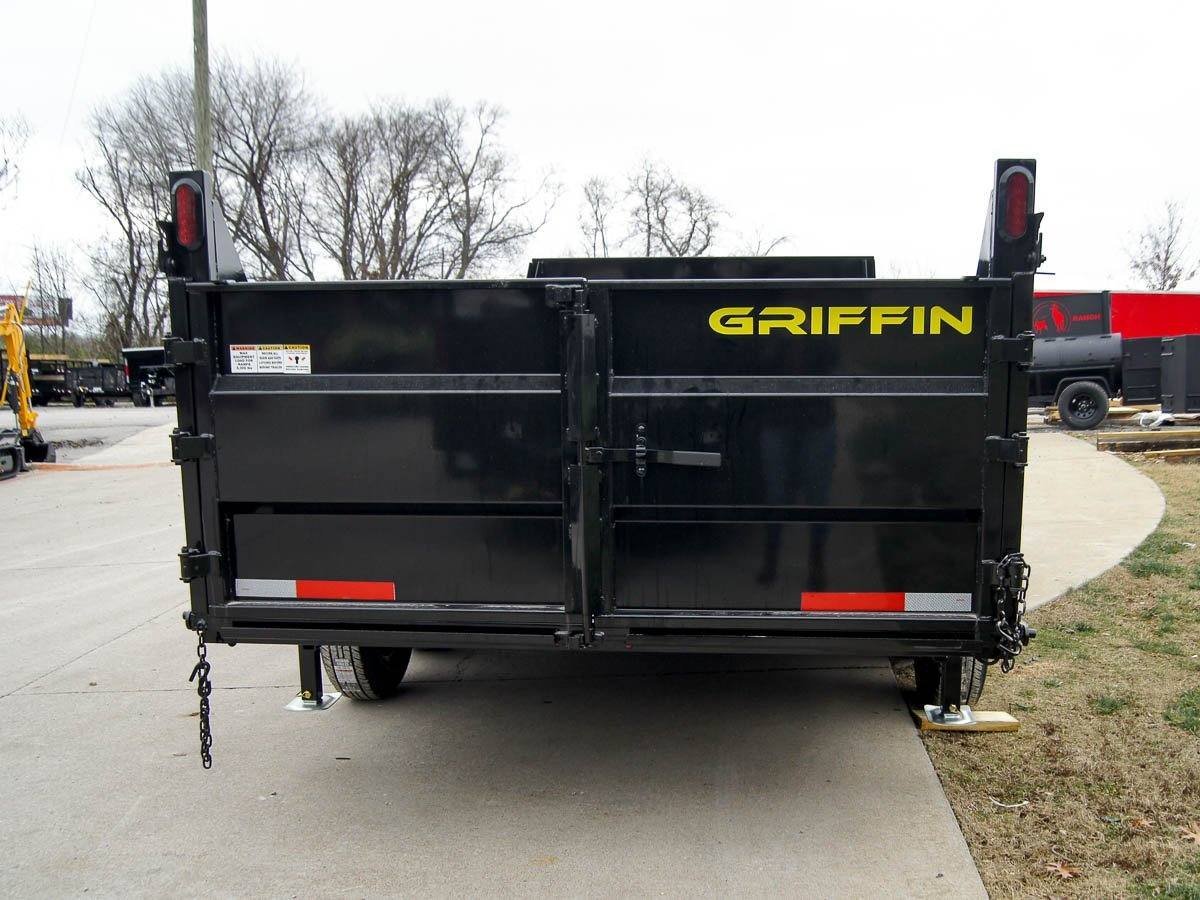

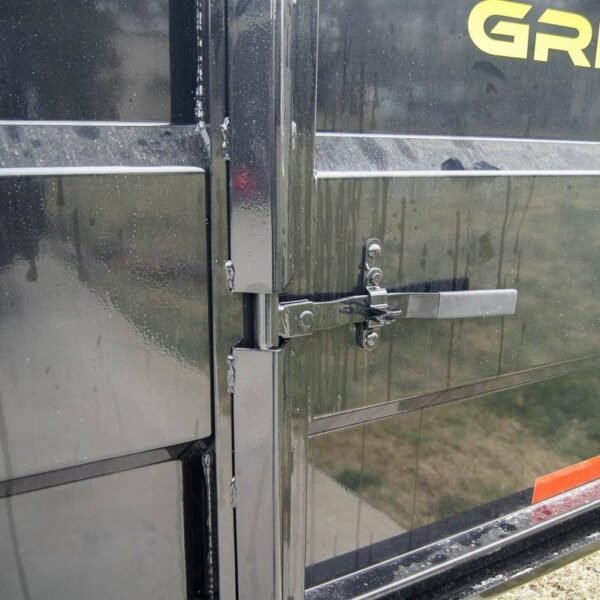

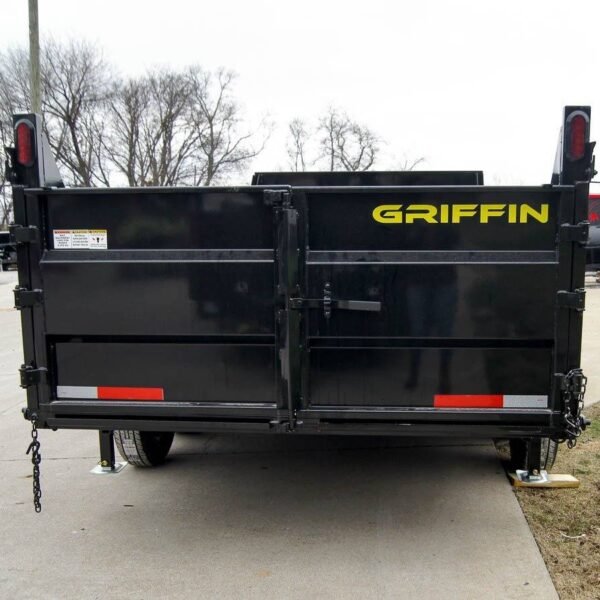

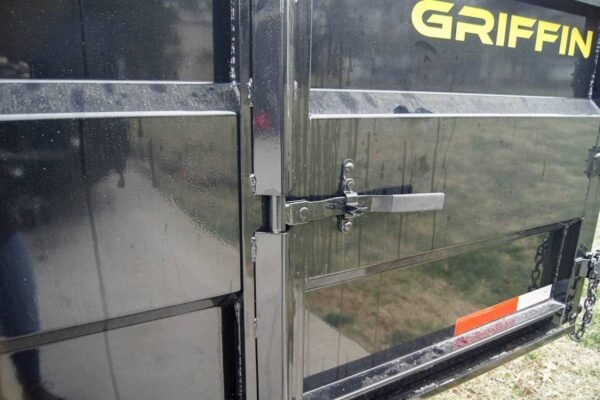

• The rear gate is designed as a 2-way combination spreader/barn gate for versatile usage and easy access to the trailer’s interior.
• The axles are tandem with EZ Lube and galvanized components for easy maintenance and extended lifespan.
• The paint finish is a high gloss black powder coat, enhancing the trailer’s appearance while providing added protection.
• The suspension system features equalized leaf springs, ensuring smooth towing and stability on the road.
• The style of the trailer is low-profile, which improves handling and aerodynamics during towing.
• The overall length of the trailer is 192 inches.
• The GVWR (Gross Vehicle Weight Rating) is 14,000 lbs., indicating the maximum safe weight for the trailer.
• The GAWR (Gross Axle Weight Rating) is 14,000 lbs., representing the maximum weight supported by the axles.
• The curb weight of the trailer is 4,855 lbs., which is its weight without any load.
• The tongue is constructed from a 2″ x 5″ tube for added strength and stability during towing.
• The payload capacity is 9,145 lbs., allowing for substantial hauling capability.
• The estimated tongue weight is 580 lbs., ensuring balanced load distribution during transport.
• The dump capacity of the trailer is 10,000 lbs., making it suitable for handling heavy loads.
